EMTEK Middleton Mortise Entry Set

Passer aux informations sur le produit
EMTEK Middleton Mortise Entry Set

EMTEK Middleton Mortise Entry Set

$1,185.00
Handleset Function

Note: Fits standard door thickness of 1-3/4”; specify if thicker. Locks for in-swing doors are standard. For out-swing doors, please specify.

Lever / Knob
Function
Handling
Finish / Color
Backsets
SKU:

For bulk or custom orders, contact our sales team.

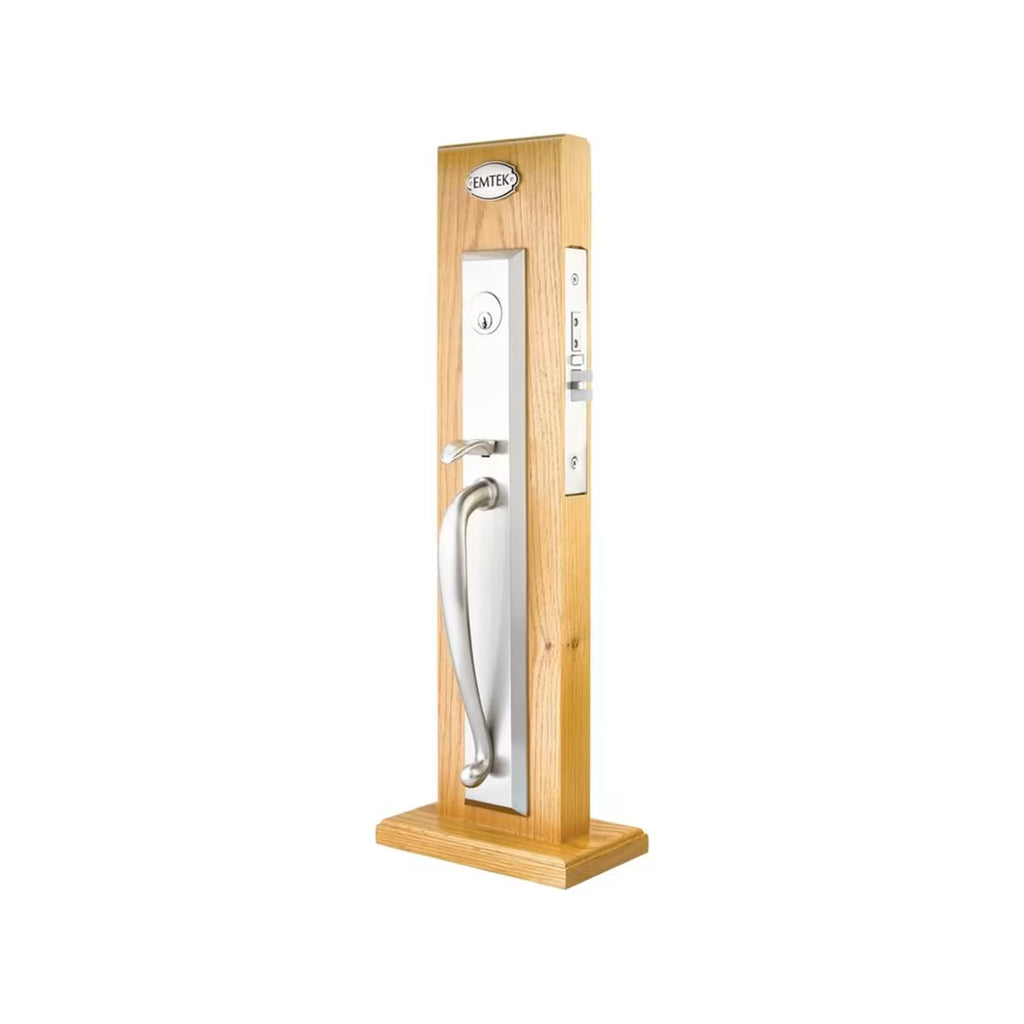

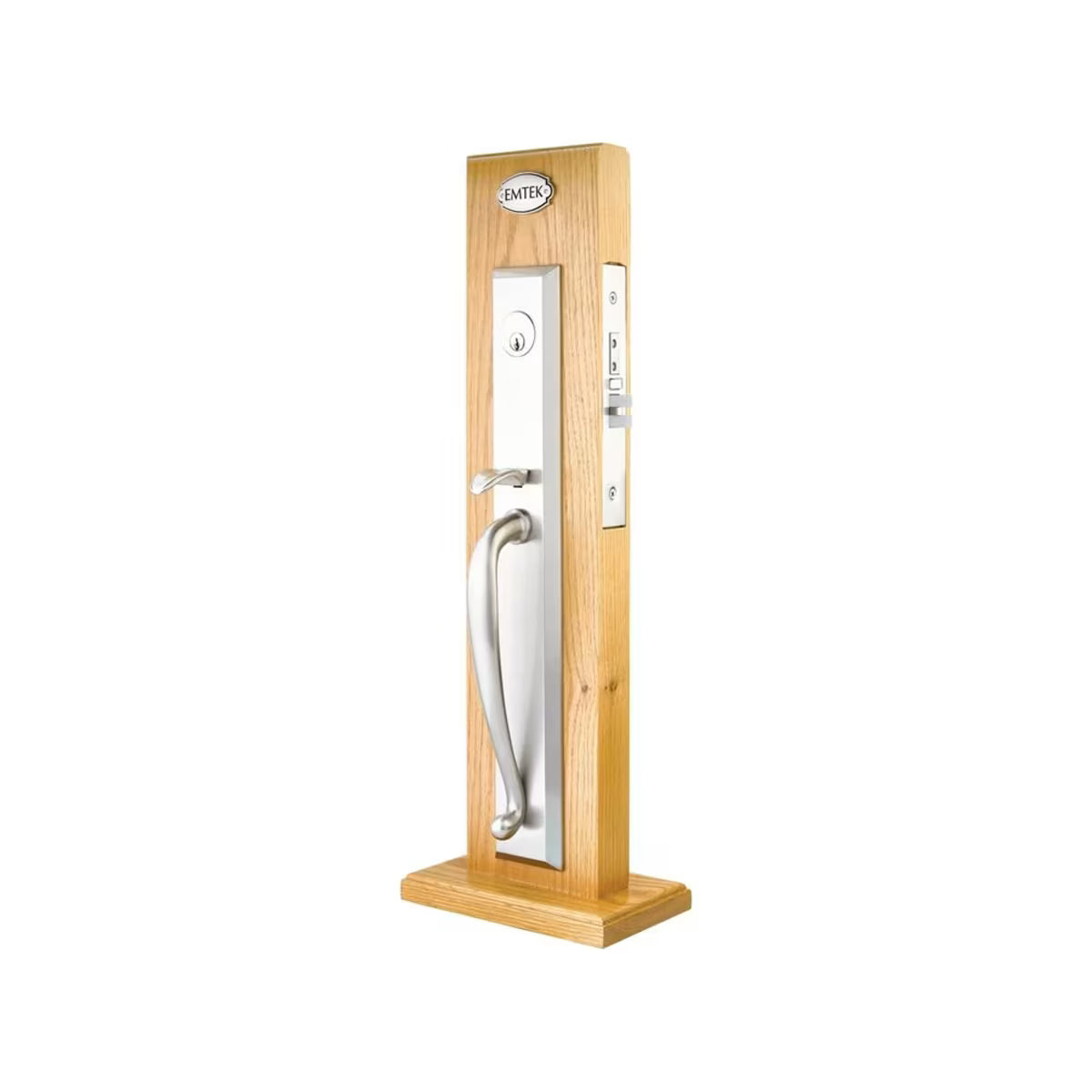

The EMTEK Middleton Mortise Entry Set combines classic mortise construction with a refined design suitable for traditional and transitional homes. Built on a heavy-duty mortise lock platform, it features a deadlocking latch bolt and forged deadbolt for reliable exterior security. The set is sold complete with the mortise lock body, latch, and strike plate, and can be paired with any compatible interior knob or lever.

Available in keyed functions such as F13 (standard keyed entry) and F20 (lock-out button), and offered in multiple EMTEK finishes, the Middleton Mortise Entry Set provides durable security with timeless style, designed to meet stringent mortise standards, it offers both architectural elegance and reliable performance for exterior doors.

Sold as complete set. Includes latch and strike plate

Can be ordered with any Brass Knob or Lever for the inside trim.



• Standard door thickness" 1¾”. Specify if thicker.
• Locks for in-swing doors are standard. For out-swing doors, please specify.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.



Specs:

Standard Door Thickness: 1 3/4"

Standard Components:

  • 1 3/4" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 1 1/2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8" – 2 1/4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3/8" – 2 3/4"

Extended Components:

  • 1 3/4" Threaded Cylinder
  • 2 1/4" Long Spindle
  • 2 1/2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate





Dimensions

Exterior Dimensions

  • Height: 18-¾"
  • Width: 2-11/16”

Interior Dimensions

  • Height: 10"
  • Width: 2-11/16”
  • Thumbturn Height (Top): 3-5/16"
  • Knob/Lever Height (Bottom): 4-7/16”



Additional Dimensions:

• Exterior Projection- 2-¾"

• Interior Projection Depends on Handle Style

• Overall Grip thickness: 1-¼"

• Clearance between door & grip is 2”

• Plates thickness: 1⁄2"

Same dimensions for Dummy function

The EMTEK Middleton Mortise Entry Set combines classic mortise construction with a refined design suitable for traditional and transitional homes. Built on a heavy-duty mortise lock platform, it features a deadlocking latch bolt and forged deadbolt for reliable exterior security. The set is sold complete with the mortise lock body, latch, and strike plate, and can be paired with any compatible interior knob or lever.

Available in keyed functions such as F13 (standard keyed entry) and F20 (lock-out button), and offered in multiple EMTEK finishes, the Middleton Mortise Entry Set provides durable security with timeless style, designed to meet stringent mortise standards, it offers both architectural elegance and reliable performance for exterior doors.

Sold as complete set. Includes latch and strike plate

Can be ordered with any Brass Knob or Lever for the inside trim.



• Standard door thickness" 1¾”. Specify if thicker.
• Locks for in-swing doors are standard. For out-swing doors, please specify.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.



Specs:

Standard Door Thickness: 1 3/4"

Standard Components:

  • 1 3/4" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 1 1/2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8" – 2 1/4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1/4" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3/8" – 2 3/4"

Extended Components:

  • 1 3/4" Threaded Cylinder
  • 2 1/4" Long Spindle
  • 2 1/2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate





Dimensions

Exterior Dimensions

  • Height: 18-¾"
  • Width: 2-11/16”

Interior Dimensions

  • Height: 10"
  • Width: 2-11/16”
  • Thumbturn Height (Top): 3-5/16"
  • Knob/Lever Height (Bottom): 4-7/16”



Additional Dimensions:

• Exterior Projection- 2-¾"

• Interior Projection Depends on Handle Style

• Overall Grip thickness: 1-¼"

• Clearance between door & grip is 2”

• Plates thickness: 1⁄2"

Same dimensions for Dummy function
