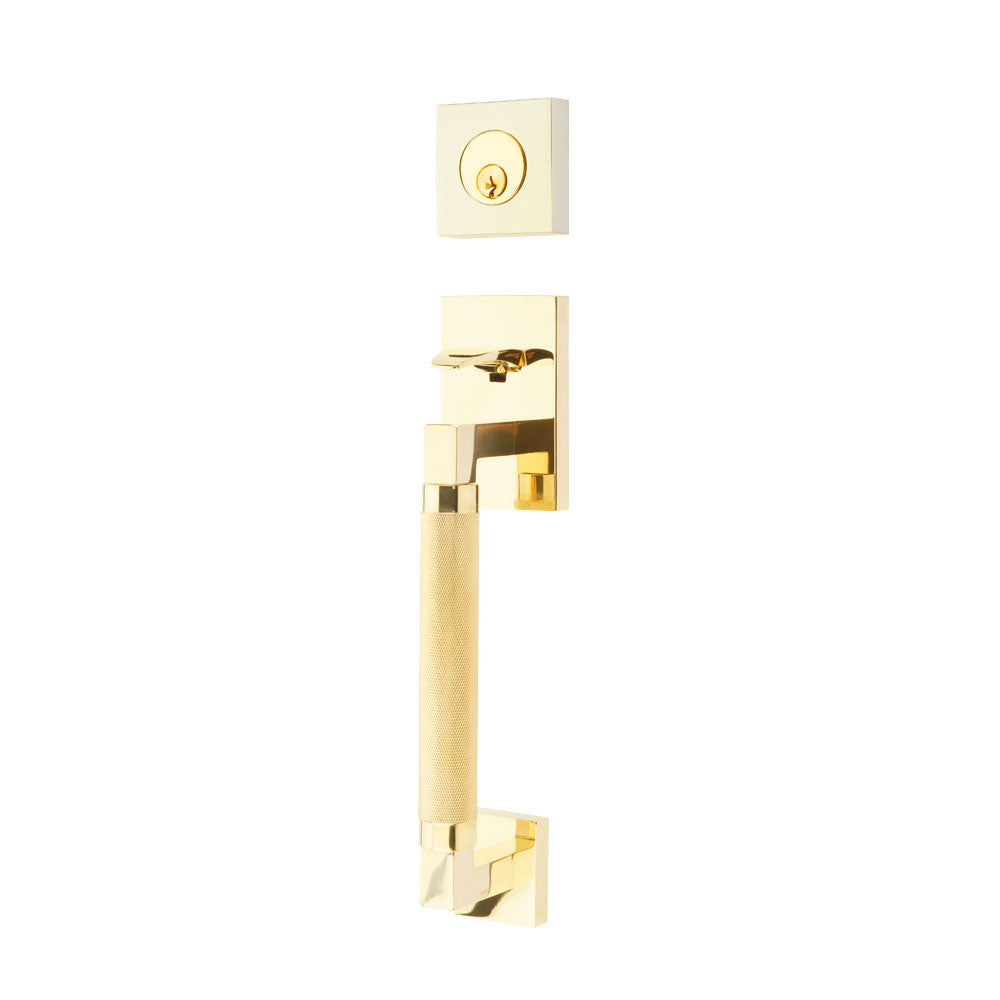

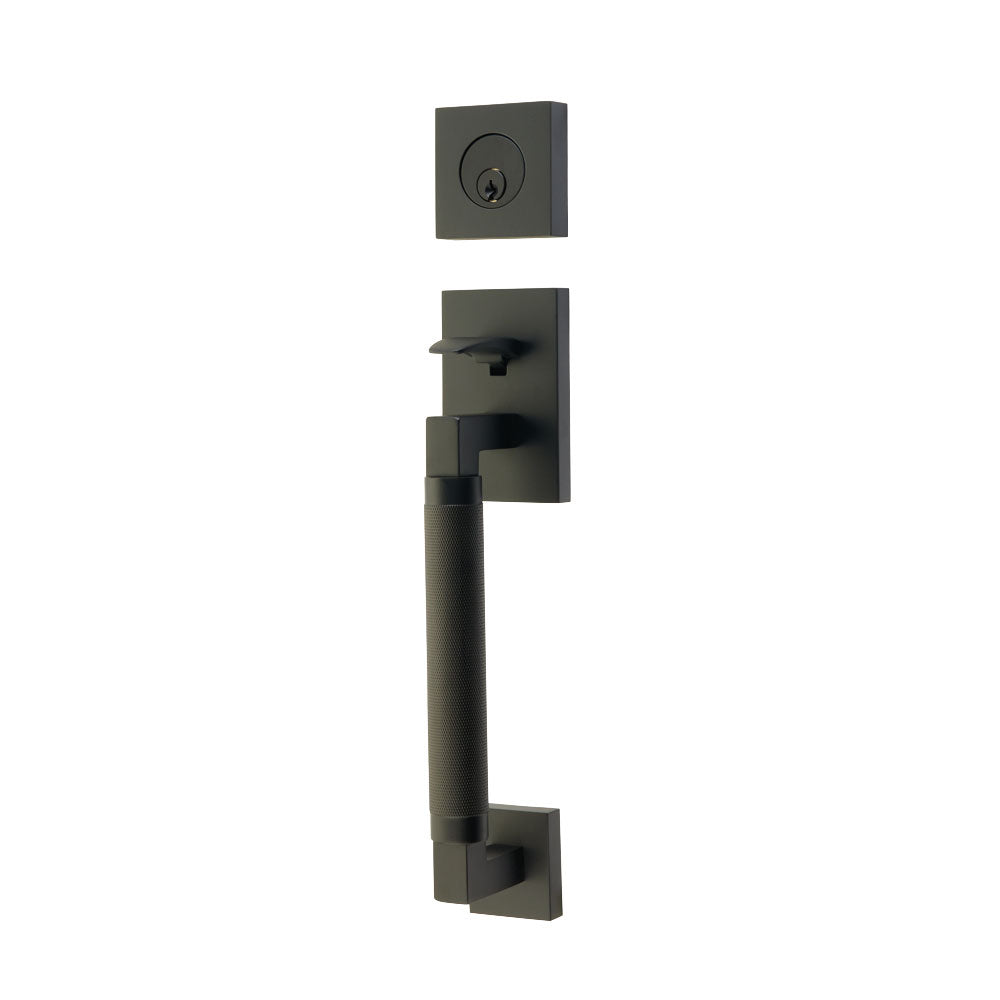

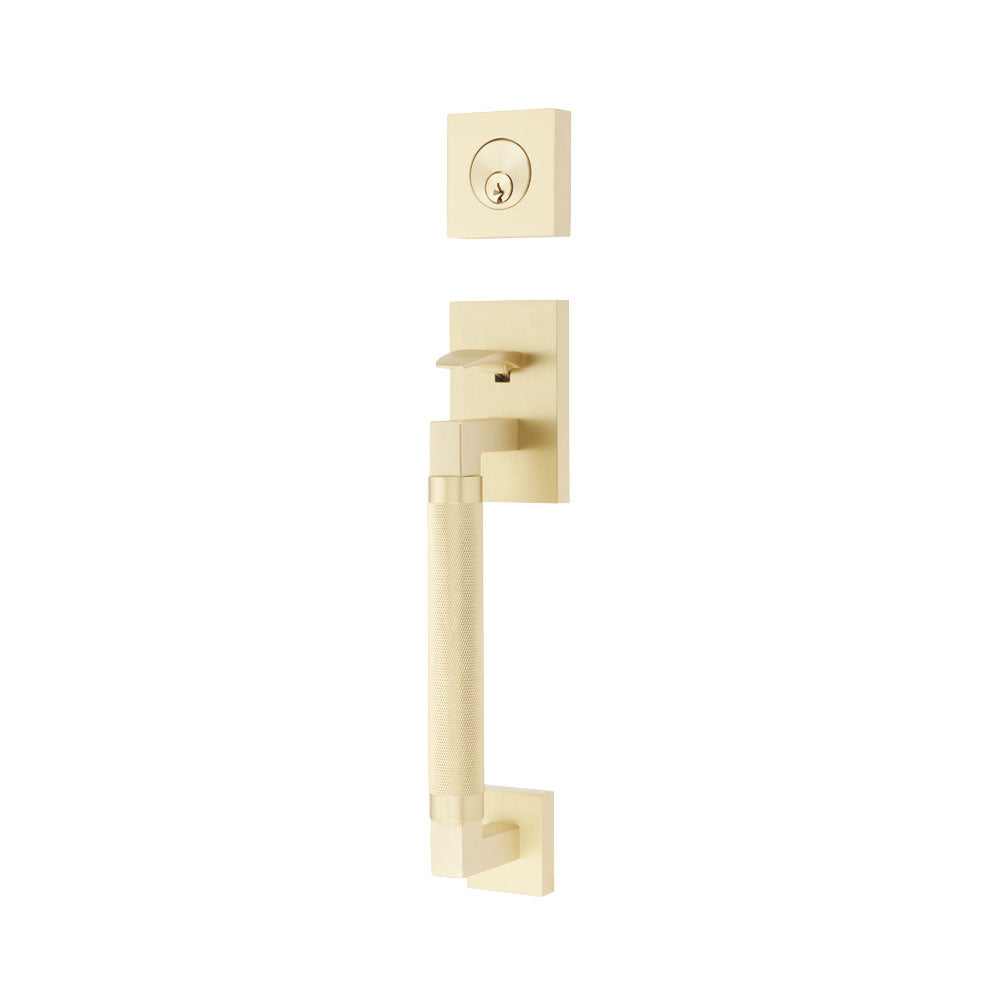

EMTEK Hercules Knurled Sectional Tubular Entry Set

Passer aux informations sur le produit
EMTEK Hercules Knurled Sectional Tubular Entry Set

EMTEK Hercules Knurled Sectional Tubular Entry Set

$545.00
Handleset Function

Fits standard door thickness of 1-3/4”; specify if thicker. BOTH backsets included: 2-3/8" & 2-3/4"

Lever / Knob
Handling
Finish / Color
SKU:

For bulk or custom orders, contact our sales team.

The EMTEK Hercules Smooth Sectional Tubular Entry Set combines clean, modern lines with understated sophistication. Its sleek rectangular backplates create a balanced, modular look, while the smooth bar grips provide a refined, tactile presence. Designed as a sectional set, it includes all necessary components for installation and can be paired with any EMTEK brass knob or lever for interior trim. With multiple finishes and grip options available, this entry set delivers contemporary style and versatile functionality for a polished, architectural entry.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2-¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever is used inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Deadbolt

  • Plate Width: 2-½"
  • Plate Height: 2-½"
  • Plate Thickness: 5/8”
  • Key Cylinder Height: 1-½”

Exterior Grip Handle

  • Overall Height: 11-½"
  • Top Plate Width: 2-½"
  • Top Plate Height: 4”
  • Bottom Plate Width: 1-¾"
  • Bottom Plate Height: 2”

Interior Trim

  • Interior Thumb turn Width: 2-½"
  • Interior Thumb turn Height: 2-½"
  • Interior Trim Plate Width 2-½"
  • Interior Trim Plate Height 2-½"



Additional Dimensions

  • Exterior Projection: 2-½"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1 7/8”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.



The EMTEK Hercules Smooth Sectional Tubular Entry Set combines clean, modern lines with understated sophistication. Its sleek rectangular backplates create a balanced, modular look, while the smooth bar grips provide a refined, tactile presence. Designed as a sectional set, it includes all necessary components for installation and can be paired with any EMTEK brass knob or lever for interior trim. With multiple finishes and grip options available, this entry set delivers contemporary style and versatile functionality for a polished, architectural entry.

Can be ordered with any Brass Knob or Lever for the inside trim.

Sold as a complete set. Includes Latch and Strike Plate.

Unlacquered Brass (US3NL) is a custom, made-to-order finish. It is available with a $25 upcharge, per item and requires an additional 2-3 day lead time. This living finish will gracefully age and evolve in appearance over time. Because of this characteristic, no finish warranty is offered on unlacquered brass products.

Fits standard door thickness of 1-3/4”; specify if thicker.

BOTH backsets included: 2-3/8" & 2-3/4"

EMPowered™ 2

The "EMPowered™2 Motorized Smart Lock Upgrade - Works with Yale Access app" is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and side plates, simply converting and upgrading a standard lock into a smart-enabled lock.

The EMPowered™2 fits door thickness up to 2-¼”.

Specs:

  • Latches come standard with square corner strike and face plates.
  • Specify radius corners if required.
  • Schlage C Keyway.
  • Handing required if lever is used inside or if interconnect device is specified.
  • Tubular entrance handle sets require a standard latch; 28° rotation latch not offered.



Dimensions

Deadbolt

  • Plate Width: 2-½"
  • Plate Height: 2-½"
  • Plate Thickness: 5/8”
  • Key Cylinder Height: 1-½”

Exterior Grip Handle

  • Overall Height: 11-½"
  • Top Plate Width: 2-½"
  • Top Plate Height: 4”
  • Bottom Plate Width: 1-¾"
  • Bottom Plate Height: 2”

Interior Trim

  • Interior Thumb turn Width: 2-½"
  • Interior Thumb turn Height: 2-½"
  • Interior Trim Plate Width 2-½"
  • Interior Trim Plate Height 2-½"



Additional Dimensions

  • Exterior Projection: 2-½"
  • Interior Projection: Depends on Handle Style
  • Overall Grip Thickness:  1”
  • Clearance between door and grips: 1 7/8”
  • Plate Thickness: ½"



Same Dimensions for the Single Cylinder, Double Cylinder and Dummy Function



Standard Components for Single Cylinder:

  • 1 1⁄2” Rosette Screws
  • Single Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2 1⁄4” Deadbolt Mounting Screws
  • Full-lip Strike Plate
  • Deadbolt Strike Plate

Standard Components for Double Cylinder:

  •  1-1⁄2” Rosette Screws
  • Double Cylinder Tailpiece
  • Outside Entry Spindle
  • Inside Passage Half Spindle
  • 2-1⁄4” & 2-1⁄2 Deadbolt Mounting Screws
  • Full-Lip Strike Plate
  • Deadbolt Strike Plate

Door Thickness Specifications:

Standard Door Thickness: 1-3⁄4”- 2-1⁄8”

Please specify Extended Door Thickness:

  • Tier 1: 2-1⁄4”- 2-5⁄8”.
  • Tier 2: 2-5⁄8”- 2-7⁄8”.
