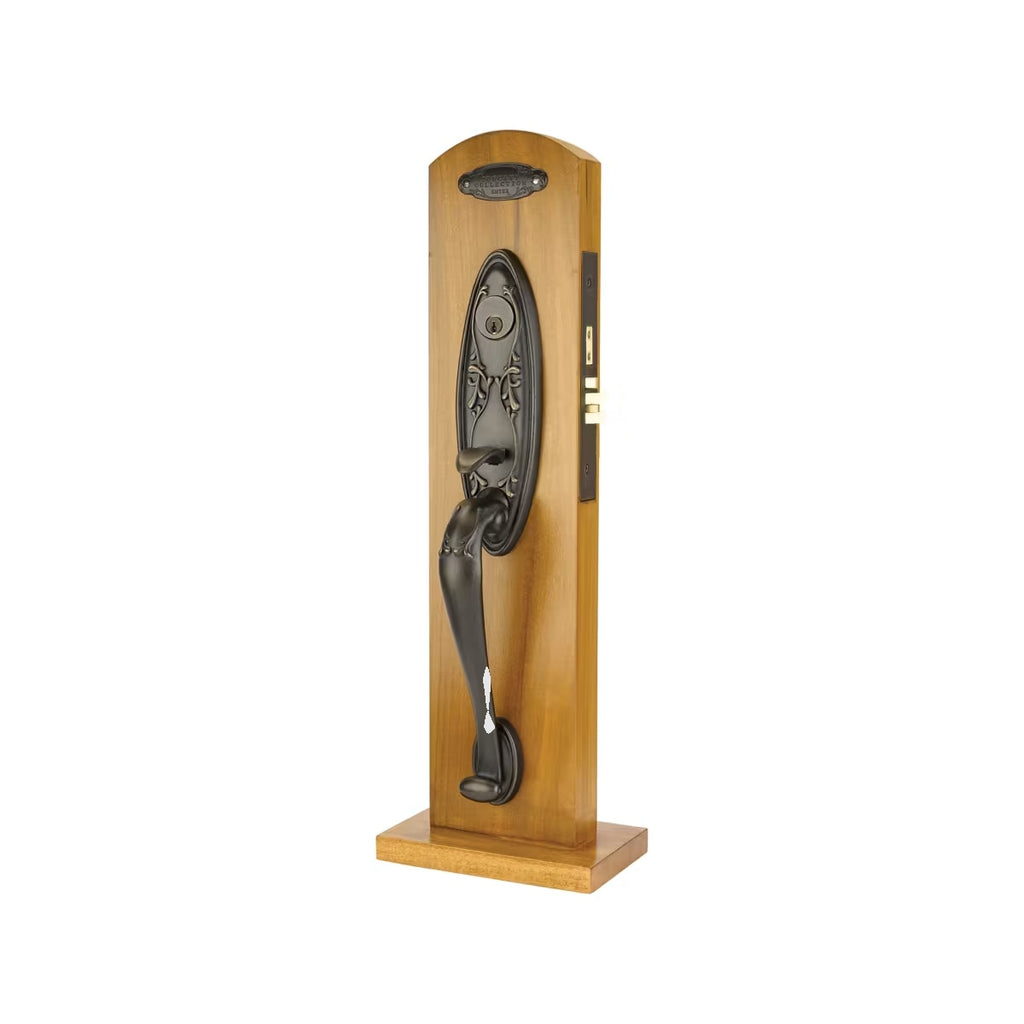

The EMTEK Da Vinci Mortise Entry Set from the Tuscany Bronze Collection reflects old-world elegance paired with the strength of heavy-duty mortise construction. Individually cast in solid bronze, each piece displays rich texture and natural variation that highlight its handcrafted character. Inspired by classic European design, the Da Vinci trim brings refined architectural detail to traditional exteriors. Built on a robust mortise lock platform, it features a deadlocking latch bolt and forged deadbolt for smooth, secure operation.
Sold as a complete set with the mortise lock body, latch, and strike plate, and available in keyed functions such as F13 (standard keyed entry) and F20 (lock-out button), the Da Vinci Mortise Entry Set delivers enduring durability and timeless Tuscan style for exterior doors.
Sold as complete set. Includes latch and strike plate.
Can be ordered with any Tuscany Bronze Knob or Lever for the inside trim.
• Standard door thickness" 1¾”. Specify if thicker.
• Locks for in-swing doors are standard. For out-swing doors, please specify.
Specs:
Standard Door Thickness: 1 ¾"
Standard Components:
- 1-¾" Threaded Cylinder
- 2" Long Spindle
- 2-¼" Top Rosette Screw
- 1-½" Bottom Rosette Screw
- Thumbpress
- Strikeplate
Extended Door Thickness: 1 7/8" – 2 ¼"
Extended Components:
- 1-½" Threaded Cylinder
- 2" Long Spindle
- 2-¼" Top Rosette Screw
- 2" Bottom Rosette Screw
- Thumbpress
- Strikeplate
Extended Door Thickness: 2 3/8" – 2 ¾"
Extended Components:
- 1-¾" Threaded Cylinder
- 2 -¼" Long Spindle
- 2-½" Top Rosette Screw
- 2" Bottom Rosette Screw
- Extended Thumbpress
- Extended Strikeplate
Dimensions
Exterior Dimensions
- Overall Height: 18-½"
- Upper Backplate Height: 10"
- Upper Backplate Width: 3”
- Lower Backplate Diameter: 1-13/16"
Interior Dimensions
- Height: 10"
- Width: 3”
- Thumbturn Height (Top): 3-7/16”
- Knob/Lever Height (Bottom): 4-7/16”
Additional Dimensions:
• Exterior Projection- 3-1/16”
• Interior Projection Depends on Handle Style
• Overall Grip thickness: 2-1/8”
• Clearance between door & grip is 1-9/16”
• Plates thickness: 1⁄2"
Same dimensions for Dummy function
